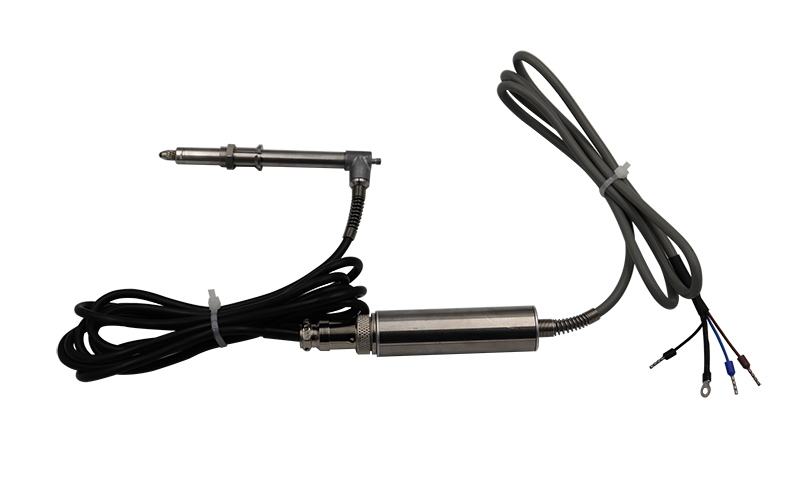

FR series pneumatic LVDT displacement sensor

Product Introduction

Differential transformer displacement sensors (LVTD) can be widely used in aerospace, machinery, construction, textiles,

railways, coal, metallurgy, plastics, chemicals, scientific research institutions and other industries in the national economy

to measure elongation, vibration, High-precision position sensor such as object thickness and expansion

The DC LVDT sensor has excellent performance, 9-28V DC power supply, and the electronic circuit is sealed in a 304 stainless

steel metal tube. It can work in harsh environments such as humidity and dust. The output signal is a standard 0-5V that can be

 used by a computer or PLC. 4-20MA output, or RS485 digital signal


产品参数 | Product parameters


Performance parameter


Power supply: 12-24V

Working voltage: 0.03-0.06MPa

Working current: voltage output type supply current: ≤12MA

            Two-wire current output type, power supply current 4-20MA

Displacement range: FR25: 0-5mm

Output signal: 0-5V, 0-10V, 40-20Ma, RS485 digital signal

Linearity error: analog signal output ±0.25%FS

Digital signal output: ±0.1%FS

Weight error≤1um

Resolution ≤0.1um

Dynamic characteristics: 3HZ

Thrust: 0.25N±0.05 (under the condition of 0.03MPa)

Service temperature:-25 to + 85

Impact resistance: 250g/11ms

Vibration allowed: 10g/2KHZ

Temperature coefficient: zero point0.01%/

Sensitivity 0.025%/



Application:glass production line inspection, metal processing inspection, auto parts inspection,

cylinder displacement detection and control, building material thickness measurement and control,

self-unloading heavy truck applications and other occasions.
