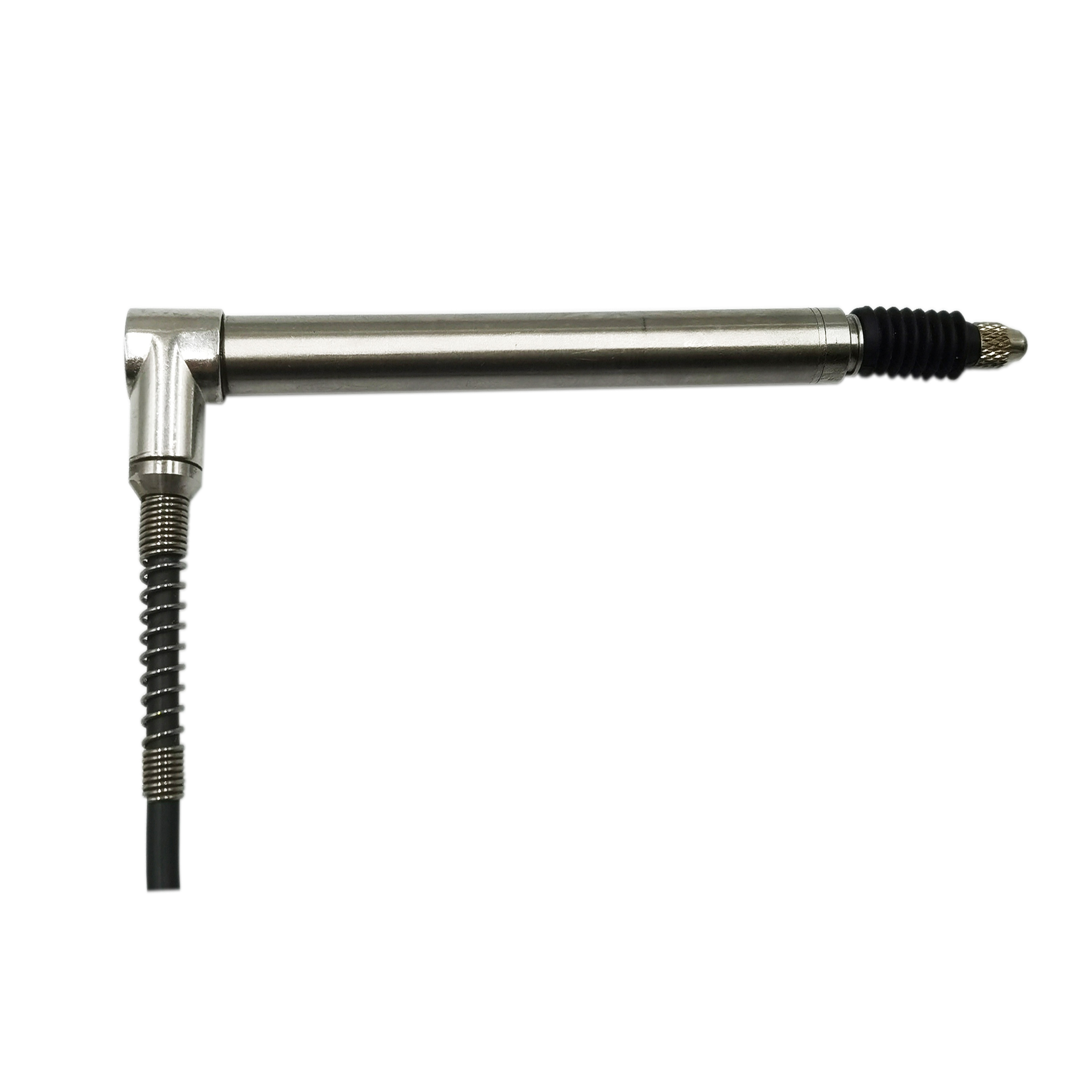

FS series LVDT Displacement Sensor

※Characteristic description

External diameter Φ 8mm, stainless steel 304 shell, rebound type

Built in precision linear bearing, good repeatability, high resolution

The probe is silicon nitride ceramic ball with good wear resistance

DC single power supply, built-in high-performance signal demodulator

Product size is short, suitable for use in small space

※ Application field

Robot; Shaft diameter detection; Precision displacement measurement; Glass production testing; Automobile parts inspection

产品参数 | Product parameters

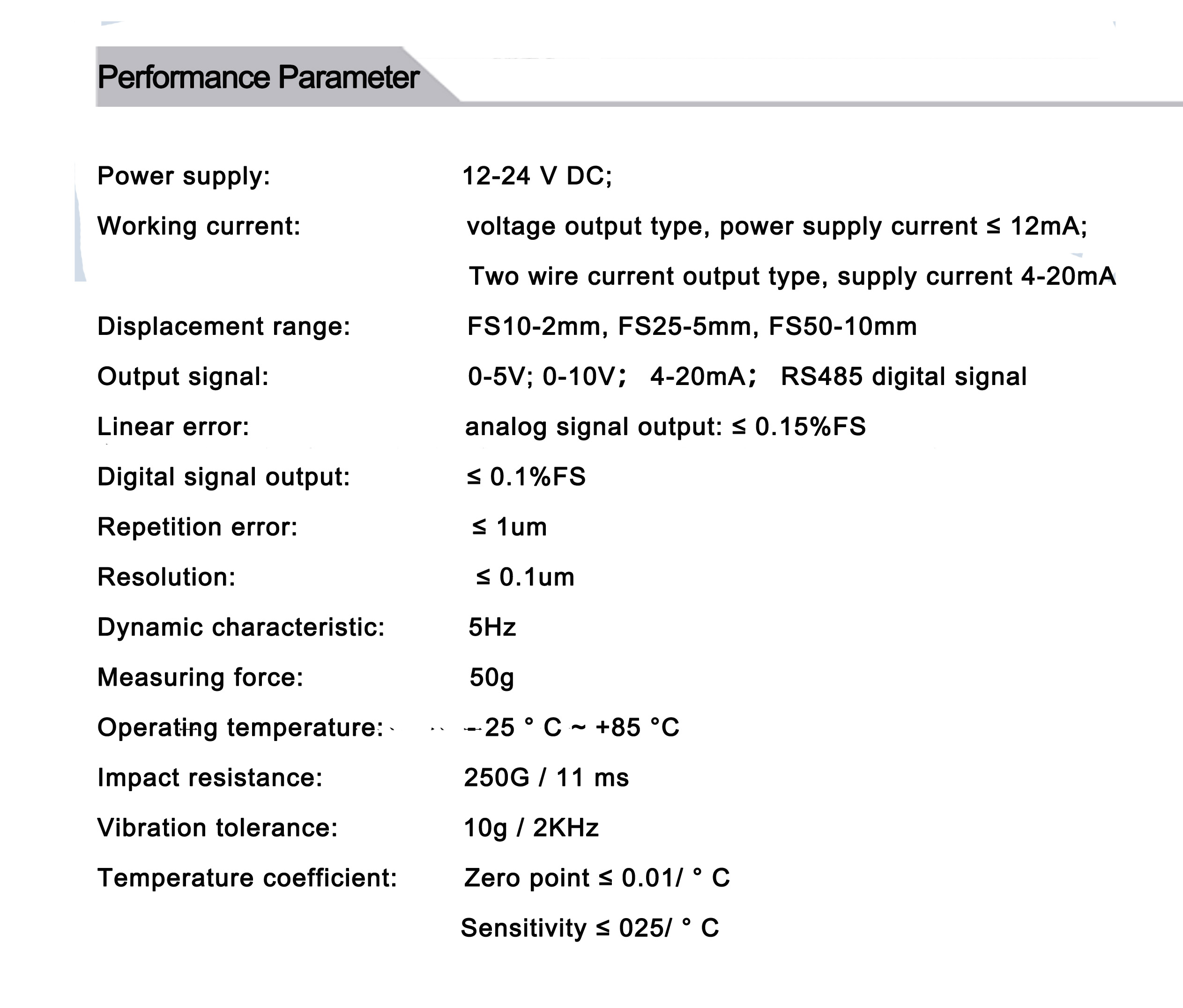

Performance parameter


Power supply:         12-24 V DC;

Working current:        voltage output type, power supply current ≤ 12mA;

Two wire current output type, supply current 4-20mA

Displacement range:     FS10-2mm, FS25-5mm, FS50-10mm

Output signal:         0-5V; 0-10V4-20mARS485 digital signal

Linear error:        analog signal output: ≤ 0.15%FS

Digital signal output: ≤ 0.1%FS

Repetition error:        ≤ 1um

Resolution:           ≤ 0.1um

Dynamic characteristic:    5Hz

Measuring force:        50g

Operating temperature:     - 25 ° C — +85 °C

Impact resistance:      250G / 11 ms

Vibration tolerance:     10g / 2KHz

Temperature coefficient:          Zero point ≤ 0.01/ ° C

Sensitivity ≤ 025/ ° C
