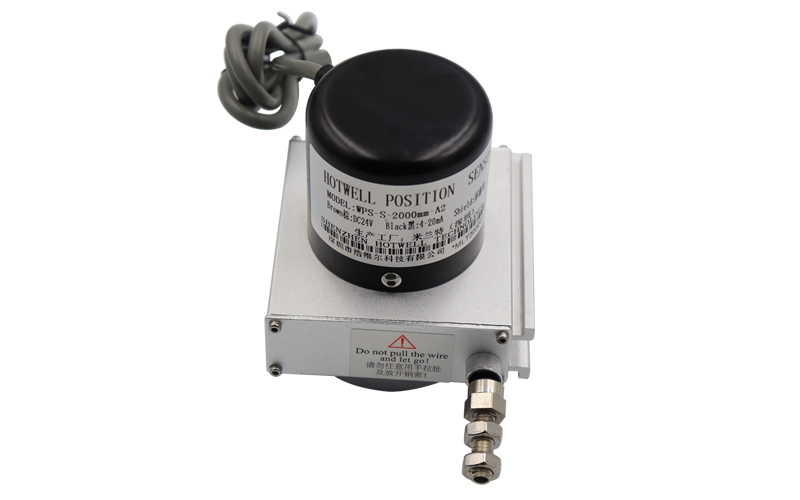

Howell WPS Economical Rope Displacement Sensor

Product introduction

 Howell WPS economical drawstring displacement sensor, measuring range 100mm-7000mm,

 S type (small 100mm-2500mm), M type (medium 500mm-7500mm), sensor output signal: resistance output (5K

 or 10K) , Voltage output: (0-5V, 0-10V, three-wire or four-wire), current output (4-20MA, two-wire, three-wire or

 four-wire; 0-20MA, two-wire, three-wire or four-wire System), pulse output (AB phase or ABZ phase pulse

 square wave, differential signal output), small sensor size, good stability, easy to install and use

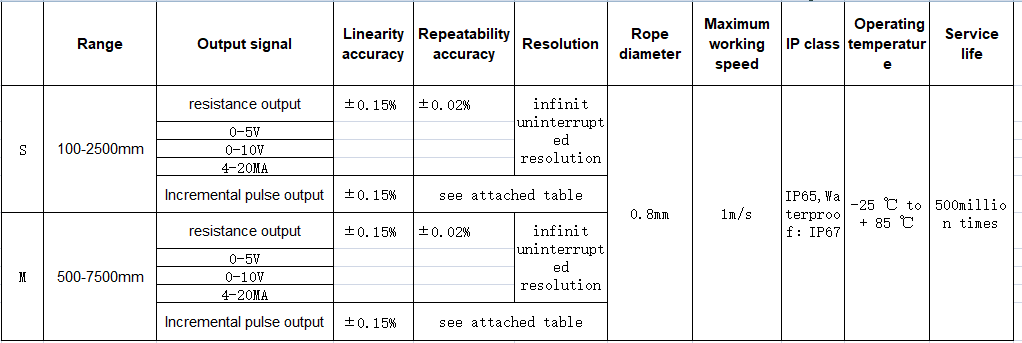

产品参数 | Product parameters



Attached table

Sensor Range Resolution
0-700mm 0.018mm(65reels))
0-1000mm 0.028mm(100reels))
1000-1200mm 0.033mm
1200-1500mm 0.042mm
1500-2500mm(S type) 0.044mm
2000-7000mm(M type) 0.055m

The above table shows the parameters of the 3600 pulse rope displacement sensor.

Other commonly used encoders include: 500 pulses, 1000 pulses, 2000 pulses,

and 2500 pulses. Please contact us for specific parameters.



Application

Storage location positioning, reservoir dam protection, gate opening control, pressure machinery,

 papermaking machinery, textile machinery, sheet metal machinery, packaging machinery, printing

 machinery, level controllers, construction machinery, industrial robots, injection machines, woodworking

 machinery, elevators , Air compressor, hydraulic machine, height machine, XY axis and other automatic

 measurement occasions such as length displacement and liquid level measurement
