Milont WS cable displacement sensor

Product introduction:

Milont WS cable displacement sensor, range of 100mm~1250mm, sensor output signal: resistance output, voltage output (0-5V0-10V), current transmission (4-20mA, two-wire system or three-wire system), the sensor size is small, high precision, easy to install and use, widely used in the automation industry.

产品参数 | Product parameters

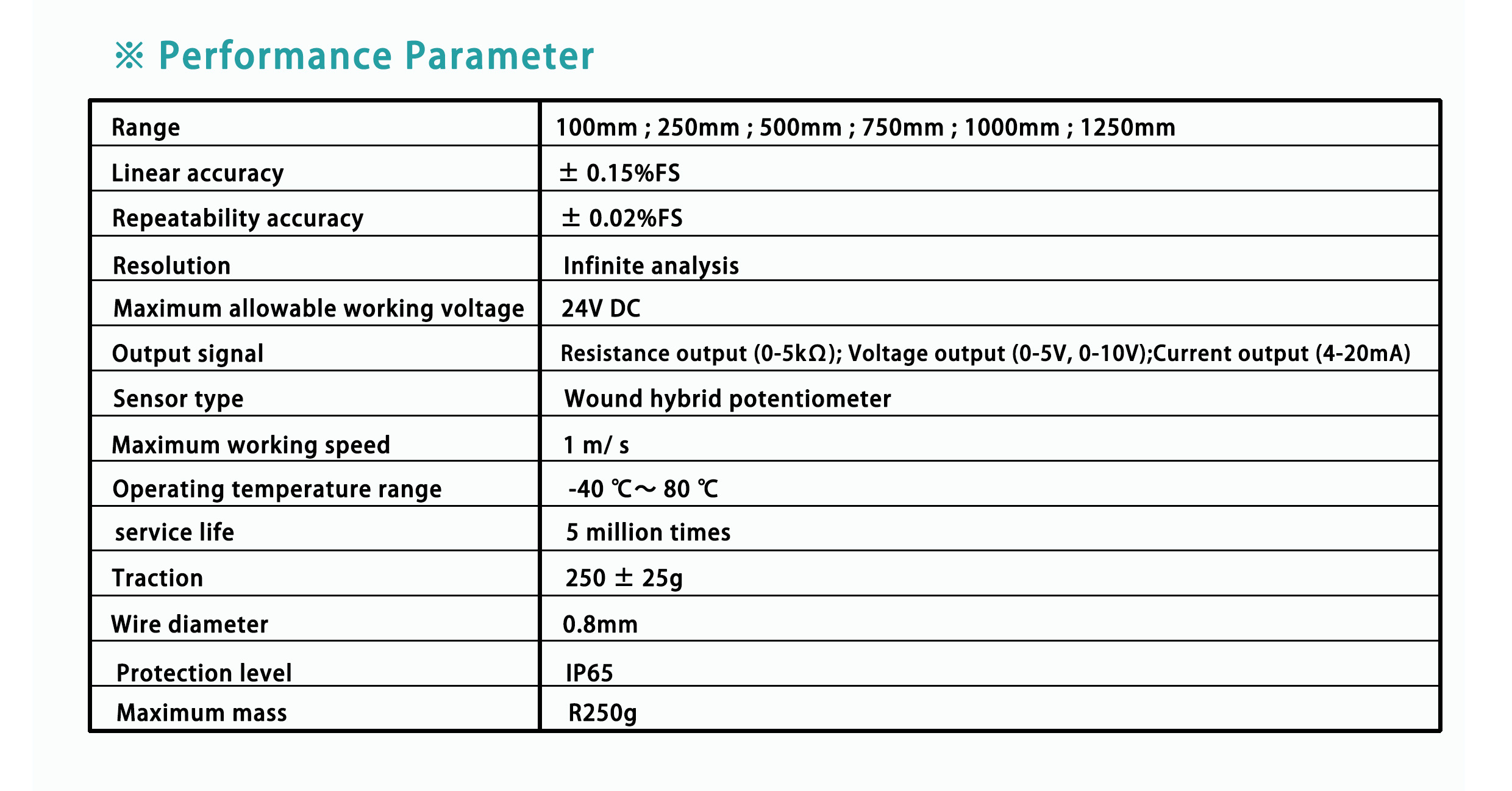

Performance parameter

Range: 100-500mm

Linear accuracy: ±0.15%FS

Repeatability accuracy: ±0.02%FS

Resistance value±10%5KΩ10KΩ

Resolution: infinite no broken parsingRS485

Maximum allowable working voltage: 24 V DC

Output signal: resistance output0-5KΩ; Voltage signal (0-5V, 0-10V); Current signal (4-20mA)

Sensor type: wire wound hybrid potentiometer (encoder)

Maximum working speed: 1m / S

Temperature range: - 40 to + 80

Service life: 5 million times

Traction: 250±25g

Wire diameter: 0.8mm

Protection grade: IP65

Maximum mass: 250g


Wiring instructions:

Sensor type

Wiring color

Connection mode

Sensor type

Wiring color

Connection mode

Resistance output type (5K / 10K)

Brown

DC 5V/10V

 current output type

(two wire system)

Brown

DC 15-24V

Blue

0V

Black

 output

Black

Output

Shielding wire

Ground

Shielding wire

Ground

Voltage output type / current output type

(four wire system)

Red

DC 15-24V

Voltage output type / current output type

(three wire system)

Brown

DC 15-24V

Green

0V

Blue

0V

Black

Positive output

Black

Output

White

Negative output

Shielding wire

Ground

Shielding wire

Ground
