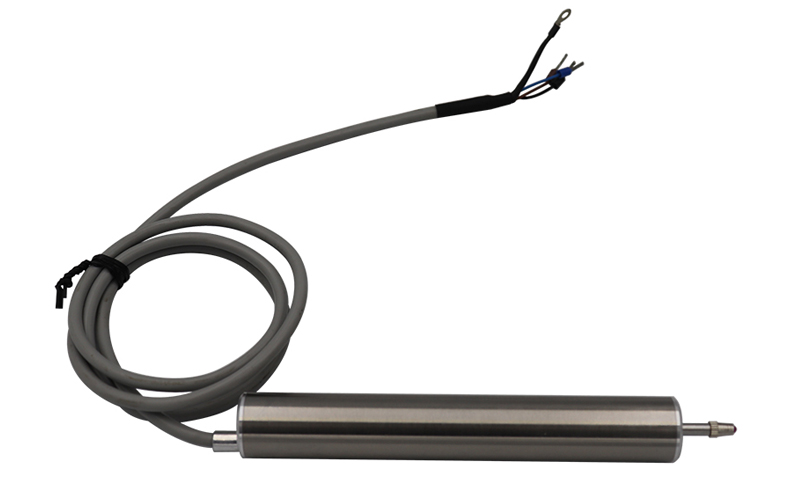

G series rebound LVDT displacement sensor

Product Introduction

G series rebound LVDT displacement sensor has excellent performance, the sensor is powered by 12-24VDC,

 the probe is made of high-hardness wear-resistant material silicon oxide, and the electronic circuit is sealed in

 a 304 stainless steel metal tube, which can work stably for a long time in harsh environments such as humidity

 and dust. , The output signal is a standard 0-5V or 4-20MA output that can be used by a computer or PLC,

 or RS485 digital signal


产品参数 | Product parameters

Power supply: 12-24V

Working current: voltage output type supply current: 12MA

           Two-wire current output type, power supply current 4-20MA

Displacement range: G25: 0-5mm; G50: 0-10mm; G125: 0-25mm;

G250: 0-50mm; G500: 0-100mm;

Output signal: 0-5V, 0-10V, 40-20Ma, RS485 digital signal

Linearity error 0.25%FS

Weight error 5um

Resolution 0.1um

Dynamic characteristics: 3HZ

Measuring force: 80g

Working temperature:-25 to + 85

Impact resistance: 250g/11ms

Vibration allowed: 10g/2KHZ

Temperature coefficient: zero point0.01%/

Sensitivity 0.025%/


Application:

Mainly used for shaft diameter runout detection, textile machinery detection, valve position

detection and control, roll gap measurement, vehicle brake wear measurement and other fields.
