Product Introduction：

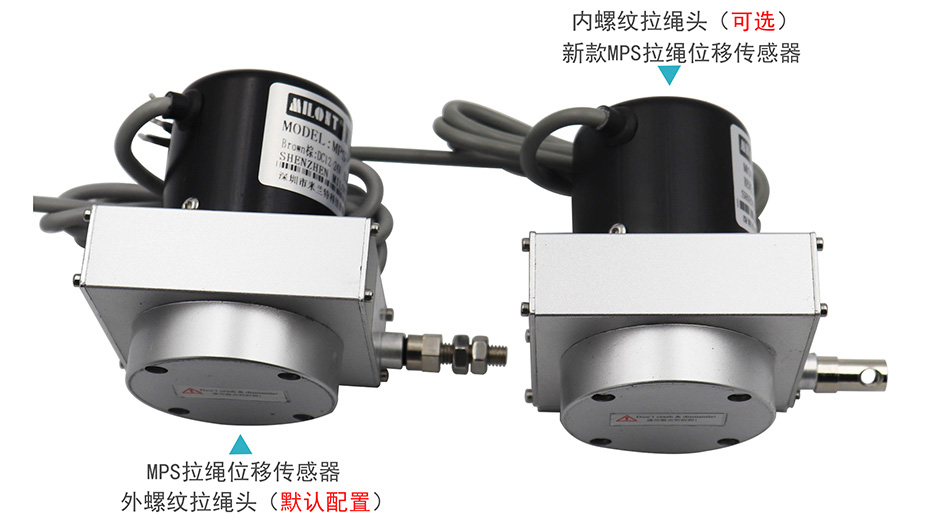

The range of MPS draw-wire displacement sensor is 100-50000 mm, including S-type (small, 100-2500 mm), M-type (medium, 500-7500 mm), L-type (large, 7000-15000 mm), XXS type (micro, 100-600 mm), XS type (micro, 100-1000 mm), XL type (super large, 15000-30000 mm). The output signals of the sensor are as follows: Resistance output (5K or 10K), voltage output (0-5V, 0-10V, three wire system or four wire system), current output (4-20mA, two wire system, three wire system or four wire system); 0-20mA, two-wire system, three wire system or four wire system), pulse output (AB phase or ABZ phase pulse square wave, differential signal output), RS485 digital signal output or absolute value coding output. The sensor has the advantages of small size, good stability, easy installation and use, and is widely used in the automation industry.

Characteristic: Long service life, up to 5 million times of operation;

High precision, linear precision ± 15%, repeatability accuracy ± 02%, and the maximum pulse output resolution is 0. 018 mm;

Various models, a variety of signal output options, convenient for system acquisition or long-distance transmission;

High protection grade, can be specially customized waterproof type, can be used in the open air.

Explain:  Shell         Anodized aluminum

Assembly:     Withholding type fixed bracket, part of the model screws fixed

Measurement components:      potentiometer, encoder

The accessories package (2 fixing brackets and 4 fixing screws) is included in the delivery
